PENDING Pxe boot failing - SCCM 2309

[PraveenKM]

Dear,
We recently implemented a new SCCM server running version 2302 and subsequently updated it to the latest version, 2309. However, upon attempting to deploy the OS image using PXE, we encountered the following error. Assistance in resolving this issue would be greatly appreciated.

According to the SMSPXE log, the error message reads as follows:

"Warning: Matching Processor Architecture Boot Image (0) not found."

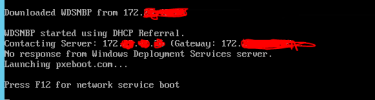

Please find below the status from the client device during the PXE boot process.


The DHCP scope has been properly configured, including ports 66 and 67.
66- The SCCM server IP
67- \SMSBoot\x64\wdsnbp.com
ADK and WinPE are running on the latest version : 10.1.25398.1
Boot image i can see only x64 available under Operating system. does it required both x86 and x64 ??

Any help here plz!!!!!!



[Harshit Pandey]

See this article by @Prajwal Desai - https://www.prajwaldesai.com/matching-processor-architecture-boot-image-not-found/



[PraveenKM]

In boot image I have only x64.. how to add x86 manually. in the below path I could see only x64 and not available x86 folder.
\\Servername\sms_gc1\OSD\boot\x64



[Harshit Pandey]

You don't need x86 as only one x64 boot image is enough for deployment.
