Hello, there seems to be an issue with my WinPE download as I'm not receiving a Task Sequence on a client without a PXE problem. I have configured the Windows DHCP server as follows. The NIC driver is included in the Task Sequence. When I enter the command prompt by pressing F8 and check the smsts.log file, I notice the following information: It appears that the PXE client is unable to download the Variable.dat file from the SCCM PXE Server. Can you please help me identify what I might be missing?
Note: The DHCP server(172.26.x.x) and PXE Server(172.27.x.x) are in the same 2nd zone-d subnet but belong to different networks. PXE is in prod domain, DHCP server in test domain. Already delete all driver from deployemt os task sequence, add them to the task sequence.

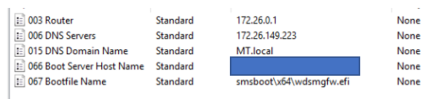

DHCP server config
My PXE client smsts.log file
Note: The DHCP server(172.26.x.x) and PXE Server(172.27.x.x) are in the same 2nd zone-d subnet but belong to different networks. PXE is in prod domain, DHCP server in test domain. Already delete all driver from deployemt os task sequence, add them to the task sequence.
DHCP server config
My PXE client smsts.log file
