PENDING New CMG installation issues error 500

[ikkhatri]

Hi Prajwal,

I followed your guide to configure CMG.

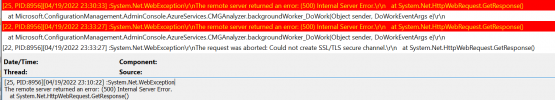

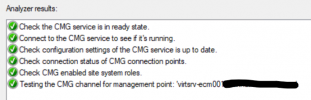

When running the CMG Connection Analyzer using AD user this is what I get:


When running it using a client certificate, this is what I get:




Running internal Root CA using a windows server vm.
CMG Certificate:



CNAME entry created in AD DNS:

Similarly I have created a CNAME entry with my external DNS provider: CMG01.activedirectorydomain.com pointing to CMG01.australiaeast.cloudapp.azure.com

Client Certificate:

SMSAdminUI.log:

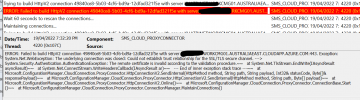

SMS_Cloud_ProxyConnector.log shows:

I have followed your CMG guide and the above is what I'm stuck at.
Additional info:
- CMG Connection Point has been installed.
- Client Device --> Config MGR --> General Tab shows intranet.
- NSlookup resolves the Service name: CMG01.australiaeast.cloudapp.azure.com with the public IP address assigned to the VM scale set.
- In the properties of the MP I have also selected:

If there are any additional logs required please let me know and am happy to screenshot it.

Any assistance will be greatly appreciated.

Thank you



[Prajwal Desai]

The configuration of CMG is correct, but it seems like the issue is with the certificate.
I am seeing two issues from the screenshots:
1. The remote certificate is invalid according to validation procedure
2. Remote server returned error 500

Data flow for CMG - Configuration Manager

Understand how data flows between components of the cloud management gateway (CMG), including network ports and internet endpoints.

docs.microsoft.com



[ikkhatri]

Thank you Prajwal, I have deleted the CMG and will reconfigure it again and have a good read at the link provided above. I will add the steps here for others once I am successful as this may help someone.



[ikkhatri]

So after removing the CMG. I decided to to re-do my entire PKI setup.
- issued a certificate for my DP and imported it under DP properties.
- issued client certificates to computers via GPO
- Created a web server certificate and in IIS configured the https binding.
- Configured https on the DP and MP in properties for each.
- Ran a test to image a new machine = successful (using https)
- Ran a app deployment test = successful. (the content was distributed to the on-prem DP to see if my intranet clients work over https first = successful.
- Created a certificate for the CMG and configured CMG to use VM scale set as cloud services (classic) is now deprecated.

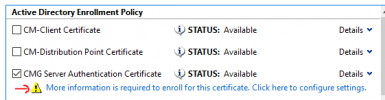

- For the CMG Certificate request after the webserver template was created I selected the below: (This is the certificate uploaded during the first stages of CMG configuration)

Common Name = CMG FQDN (IE: cmg01.region.cloudapp.azure.com)
DNS: ECM (SCCM) site server FQDN (IE: configmgrserver.local-ad-domain.com)
- Checked client settings and enabled Cloud services
- Added the CMG to the boundary group
- Configured the service connection point and selected the CMG service.
- Added the root CA to the CMG configuration.
- Went over your entire PKI setup, and CMG guide again to see if I didn't miss anything
- And finally added the CNAME entries in AD DNS and external dns provider (godaddy)
In DNS (AD):
- Added the Alias name as the cmg service name (IE: cmg01)
- FQDN: cmg01.region.cloudapp.azure.com (IE: cmg01.australiaeast.cloudapp.azure.com)
In External DNS provider (godaddy):
- Added a new entry for CNAME where name is your CMG name (IE: cmg01)
- Added the value as: FQDN: cmg01.region.cloudapp.azure.com (IE: cmg01.australiaeast.cloudapp.azure.com)

- Thereafter I removed the application from the on-prem DP and distributed the content to CMG only, and tried to install the app again so the content gets delivered from the CMG = successful

CMG Service functioning perfectly.

Screenshot of config mgr client

My internet based management point (FQDN) was automatically set:


As you can see the google chrome app is only distributed to the cmg:

Google Chrome installed over CMG:

I am now curious about the following guide so that will be next:
https://www.prajwaldesai.com/deploy-task-sequence-over-internet-sccm-cmg/

Thank you.
