PENDING Imaging with two Drives

Windows4life

New Member
3
0
1

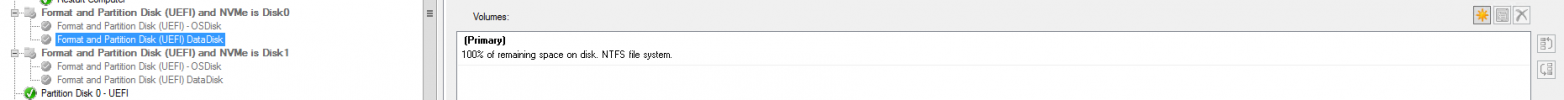

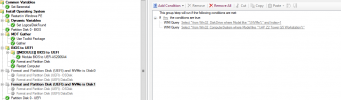

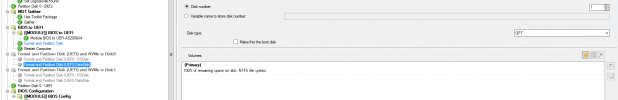

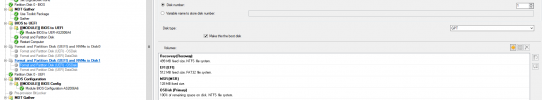

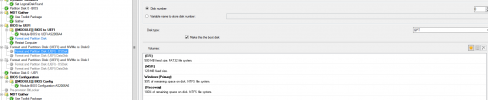

Hello all, i am hoping that some one can help me. I have a particular computer model HP Z2 G5 Workstation with two drives in it. One of them is NVMe and another is SSD. Originally this computer was set up as using RAID which i disabled, now i have two drives. The problem is that our imaging TS is set up where drive 0 is primary drive where TS drops the wim and makes it main drive. Configuration on this computer is completely backwards. NVMe which is 2TB and i want to make it primary os drive registers as drive 1, and SSD which is 7TB registers as drive 0. So naturally TS drops OS on the 7TB drive. i have added the following steps to my TS with hopes that it would solve the issue, however its still doing the same thing.



AhmedLS

Active Member
32
2
8
Hi,

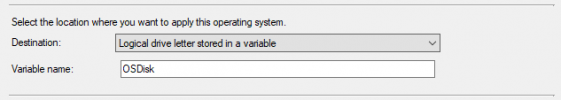

you calling both disks "OSDisk" which is the variable you use to till the WIM file to apply the windows image. you should call the one you want OSDisk and on your windows image use the variable.


Attachments

  • Capture.PNG
    4.2 KB · Views: 8
OP
W

Windows4life

New Member
3
0
1

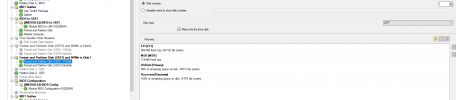

This is what i have now.


Attachments

  • 2022-05-13_14-00-37.png
    74.8 KB · Views: 4
  • 2022-05-13_14-03-06.png
    75.4 KB · Views: 4
  • 2022-05-13_14-03-27.png
    29.9 KB · Views: 3
  • 2022-05-13_14-03-52.png
    15.8 KB · Views: 3
